產品詳情
| 產品料號 | CEN981012R08 | |
| 額定負荷 | DC5V 1mA | |
| 接觸阻抗 | 5ΩMax | |
| 絕緣阻抗 | 50MΩMin DC50V | |
| 耐電壓 | AC50V(50-60HZ)for1Minute | |
| 電氣壽命 | 200,000 Cycles | |
| 脈沖數 | / | |
| 扭矩 | 20-40gf.cm | |
| 制動數 | / | |
| 機械壽命 | 200,000 Cycles | |
| 使用溫度 | -15℃--70℃ | |
| 耐候性能 | ||
| 耐寒性 | -20℃±2℃ | 96H |
| 耐熱性 | 80℃±2℃ | 96H |
| 耐濕性 | 60℃±2℃ | 90~95%RH,96H |

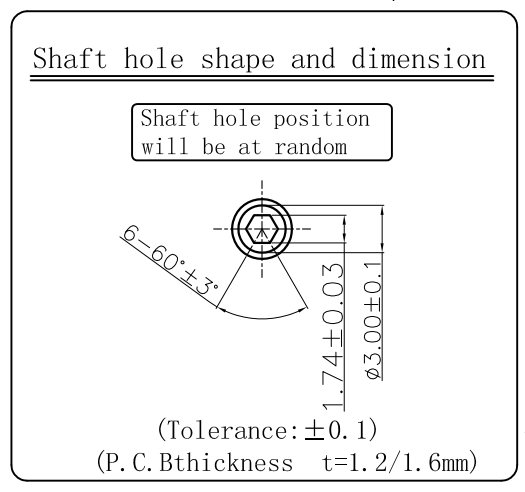

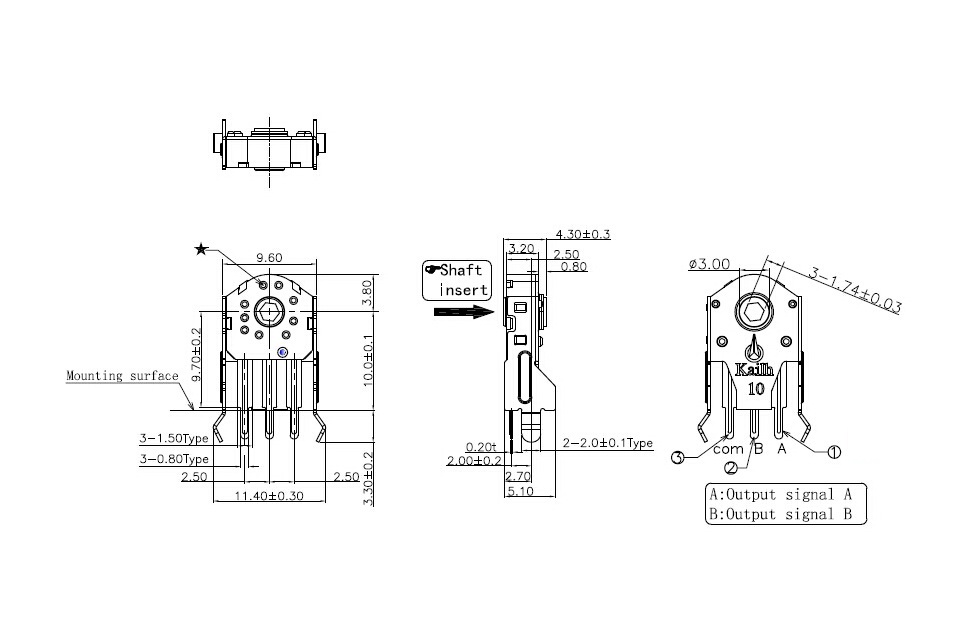

外形圖
電路圖
| 包裝規格 | ||
| 包裝數(PCS) | 1盒 | 1000PCS |
| 1箱 | 10000PCS | |
| 波峰自動焊接條件 | ||
| 項目 | 預熱溫度 | 100±5℃ |
| 預熱時間 | 60S(max.) | |
| 焊接溫度 | 260±5℃ | |
| 焊接時間 | 3±1S | |
| 手工焊接條件 | ||
| 焊接溫度 | 350℃±5℃ | |
| 焊接時間 | 3±1s | |
| 烙鐵功率 | 20W(max.) | |
| 注意事項： |
| 1.本產品目錄中產品的顏色與實物的顏色有所差異 |
| 2.請使用1.6mm板厚的印刷電路板 |
| 3.請以最小訂購單位的N(整數）倍來訂貨 |
| 4.汽車用時，請進行確認后使用 |
產品一覽
| 產品編號 | 圖片 | 軸心高度 | 扭矩 | 孔徑 | 壽命 | 規格書 | 備注 |
| CEN981412R05 |  |
14.00mm | 10-25gf.cm | 1.76mm | 300,000 Cycles |  |
. |
| CEN981112R25 |  |
11.00mm | 00-15gf.cm | 1.74mm | 300,000 Cycles | |
. |
| CEN981012R24 |  |
10.00mm | 20-40gf.cm | 1.74mm | 800,000 Cycles | |
. |
| CEN989012R10 |  |
9.00mm | 15-30gf.cm | 1.78mm | 300,000 Cycles | |
. |
| CEN988012R21 |  |
8.00mm | 10-20gf.cm | 1.74mm | 300,000 Cycles | |
. |
| CEN987012R03 | |
7.00mm | 15-30gf.cm | 1.76mm | 300,000 Cycles | |
. |
| CEN981012R01 |  |
10.00mm | 15-30gf.cm | 1.76mm | 300,000 Cycles | |
. |
| CEN981012R02 |  |
10.00mm | 15-30gf.cm | 1.74mm | 200,000 Cycles | |
. |
| CEN981012R05 |  |
10.00mm | 15-30gf.cm | 1.74mm | 300,000 Cycles | |
|
| CEN981012R08 | |
10.00mm | 20-40gf.cm | 1.74mm | 200,000 Cycles | |
. |
| CEN985512R14 |  |
5.50mm | 15-30gf.cm | 1.74mm | 200,000 Cycles | |
. |
| CEN985012R12 |  |
5.00mm | 15-30gf.cm | 2.00mm | 800,000 Cycles | |
. |
| CEN981112R05 |  |
11.00mm | 15-30gf.cm | 1.74mm | 300,000 Cycles | |
. |
