Product Details
| P/N | CEN281315D01 | |
| Rating | DC5V 1mA | |
| Cotact resistance | 5ΩMax | |
| Insulation resistance | 50MΩMin DC250V | |
| withstanding voltage | AC300V(50-60HZ)for1Minute | |
| Electrical life | 300，000Cycles | |
| Pulse | 15Plus/360° | |
| Torque force | 15-40gf.cm | |
| Brake number | 30 | |
| Mechanical life | 300，000Cycles | |
| Operating temperature | -25℃+80℃ | |
| Weather resistance | ||
| low temperature resistance | -20℃ | 96H |
| heat resisting property | 80℃ | 96H |
| temperature tolerance | 60℃±2℃90~95%RH | 48H |

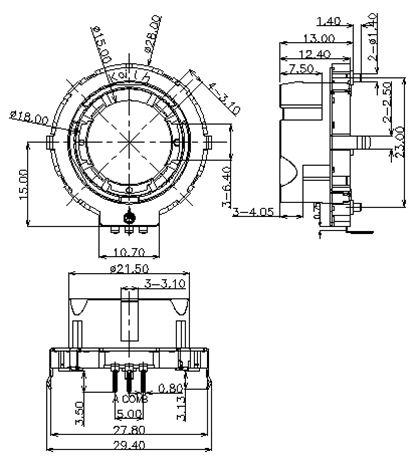

Outline size
Circuit
| Package | ||
| Quantity(PCS) | 1bag | 100PCS |
| 1CTN | 1000PCS | |
| Wave peak automatic welding condition | ||
| Item | preheat temperature | 100±10℃ |
| preheating time | 60S(max.) | |
| welding temperature | 260±5℃ | |
| welding time | 5±1S | |
| Manual welding condition | ||
| welding temperature | 300℃±10℃ | |
| welding time | 3+1/0S | |
| Soldering iron power | 60W(max.) | |
| Attention： |
| 1.the product color in the catalogue is differ from the material object |
| 2.Please order with the n (integer) times of the MOQ |
| 3.Please check with me when you use it in auto |
Product overview
| Product code | Picture | Dimensions | Torque | Number of pulses / positioning number | Life | Remarks | |
| CEN287515D01 | |
28*7.5mm | 15-40gf.cm | 15/30 | 300，000Cycles |  |
|
| CEN281315D01 | |
28*13mm | 15-40gf.cm | 15/30 | 300，000Cycles | |
